易卖工控网（www.ymgk.com）提供”倍加福安全栅KCD2-SR-EX1.LB”，产品详情：品牌/厂家：倍加福、型号：KCD2-SR-EX1.LB、成色：全新、货期：现货 1天内发货、保修：3650天，更多产品详情就上易卖工控网。

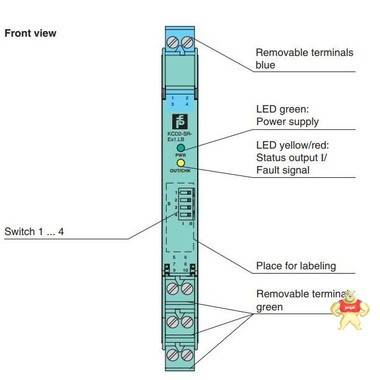

P+F安全栅,KCD2-SR-EX1.LB
倍加福开关量输入安全栅KCD2-SR-EX1.LB;
KCD2-SR-EX1.LB 电气参数:
Supply
Connection Power Rail or terminals 9+, 10-
Rated voltage Ur 19 ... 30 V DC
Ripple ≤ 10 %
Rated current Ir ≤ 30 mA
Power dissipation ≤ 500 mW
Power consumption ≤ 500 mW
Input
Connection side field side
Connection terminals 1+, 2-
Rated values acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current approx. 10 V DC / approx. 8 mA
Switching point/switching hysteresis 1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA
Pulse/Pause ratio ≥ 20 ms / ≥ 20 ms
Output
Connection side control side
Connection output I: terminals 5, 6 ; output II: terminals 7, 8
Output I signal ; relay
Output II signal or error message ; relay
Contact loading 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 30 V DC/2 A resistive load
Minimum switch current 2 mA / 24 V DC
Energized/De-energized delay ≤ 20 ms / ≤ 20 ms
Mechanical life 107 switching cycles
KCD2-SR-EX1.LB 电路图：
