模拟量安全栅KCD2-SCD-EX1

易卖工控网（www.ymgk.com）提供”模拟量安全栅KCD2-SCD-EX1”，产品详情：品牌/厂家：倍加福、型号：KCD2-SCD-EX1、成色：全新、货期：现货 1天内发货、保修：3650天，更多产品详情就上易卖工控网。

倍加福模拟量安全栅KCD2-SCD-EX1；
KCD2-SCD-EX1电气技术参数如下：
Connection Power Rail or terminals 9+, 10-
Rated voltage Ur 19 ... 30 V DC
Ripple ≤ 10 %
Rated current Ir ≤ 30 mA
Power dissipation ≤ 600 mW
Power consumption ≤ 700 mW
Input
Connection side control side
Connection terminals 5-, 6+
Input signal 4 ... 20 mA limited to approx. 30 mA
Input voltage depending on switch configuration
open loop voltage of the control system < 23 V
open loop voltage of the control system < 27 V
Voltage drop depending on switch configuration
open loop voltage of the control system < 23 V: approx. 6 V at 20 mA
open loop voltage of the control system < 27 V: approx. 10 V at 20 mA
Input resistance > 100 kΩ, with field wiring open
Output
Connection side field side
Connection terminals 1+, 2-
Current 4 ... 20 mA
Load 0 ... 650 Ω
Voltage ≥ 13 V at 20 mA
Ripple 20 mV rms

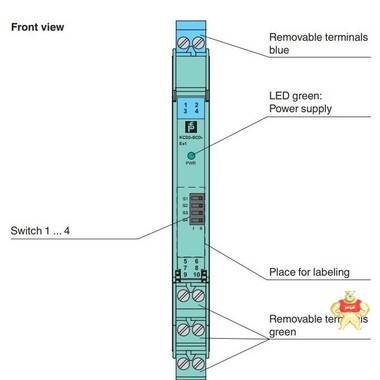

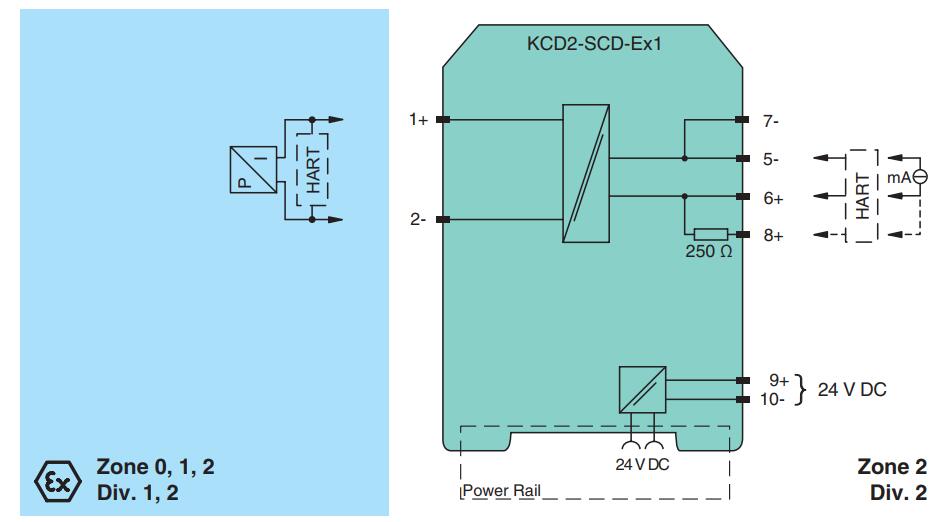

KCD2-SCD-EX1 电路图：
