易卖工控网（www.ymgk.com）提供”研华ACP-4320工控机4U黑色机箱双系统热插拔磁盘阵列工业机箱”，产品详情：品牌/厂家：研华、型号：ACP-4320、成色：全新、货期：期货 7天内发货、保修：365天，更多产品详情就上易卖工控网。
深圳市诚润捷科技有限公司成立与2010年7月11号，是工业自动化控制技术领域内的一家代理贸易企业，研华、研祥工控机的核心代理经销商。
公司靠的是制度严明、流程规范、奖罚分明的规章制度下去管策体制，监管产品的质量。
在我们全体员工的共同努力之下,公司的发展稳健提升,业绩蒸蒸日上，市场份额稳步增长，为客户的需求量身订制解决方案和应用方案等。我们的工作得到了许多客户的认可和支持，建立了长期稳定的合作关系。
属于我们诚润捷自己品牌的产品，大家跟我们一起拭目以待......
深圳市诚润捷科技有限公司
诚信 共赢 效率

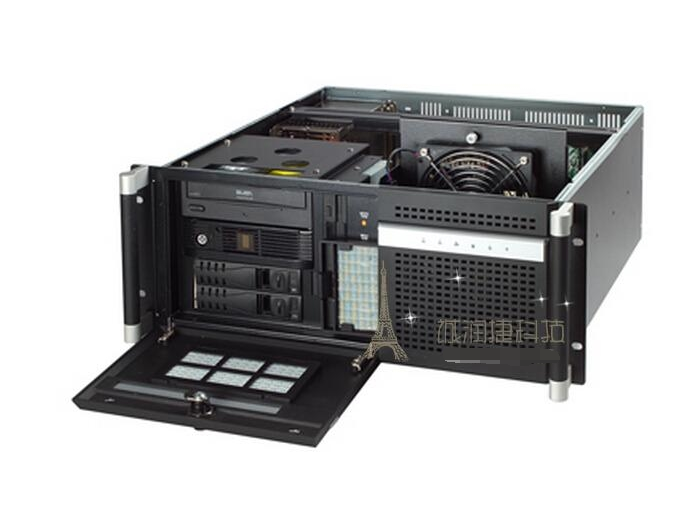

ACP-4320BP-00BE
4U上架式机箱，支持双系统或双SAS/SATA HDD托架
| | ACP-4320BP-00BE | ACP-4320BP-40BE | ACP-4320MB-00BE | ACP-4320MB-40BE | |
|---|---|---|---|---|---|
| | Quote | Quote | Quote | Quote | |
| Front I/O Interface | 2 | 2 | 2 | 2 | |
| Cooling | System Fan | System fan speed referring to chassis thermal sensor, or CPU temperature | System fan speed referring to chassis thermal sensor, or CPU temperature | System fan speed referring to chassis thermal sensor, or CPU temperature | System fan speed referring to chassis thermal sensor, or CPU temperature |
| Air Filter | Yes | Yes | Yes | Yes | |
| Fan | 1(12 cm/74 CFM) + 1 (6cm / 28 CFM) | 1(12 cm/74 CFM) + 1 (6cm / 28 CFM) | 1(12 cm/74 CFM) + 1 (6cm / 28 CFM) | 1(12 cm/74 CFM) + 1 (6cm / 28 CFM) | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) | 0 ~ 40° C (32 ~ 104° F) | 0 ~ 40° C (32 ~ 104° F) | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) | |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing | |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing | |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms | 1 Grms | 1 Grms | 1 Grms | |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G | 2 G | 2 G | 2 G | |
| Non-Operating Shock | 30 G | 30 G | 30 G | 30 G | |
| Physical Characteristics | Weight | kg ( lb) | kg ( lb) | kg ( lb) | kg ( lb) |
| Dimensions (W x H x D) | 482 x 177 x 479 mm (19" x 7" x ") | 482 x 177 x 479 mm (19" x 7" x ") | 482 x 177 x 479 mm (19" x 7" x ") | 482 x 177 x 479 mm (19" x 7" x ") | |
| Disk Drive Bay | " Front-Accessible | 2 (compatible with " or " devices) | 2 (compatible with " or " devices) | 2 (compatible with " or " devices) | 2 (compatible with " or " devices) |
| External Bay | 2 | 2 | 2 | 2 | |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 | Power, HDD, temperature, fan, LAN1, and LAN2 |
| Rear Panel | One 9-pin D-Sub opening | One 9-pin D-Sub opening | Five 9-pin D-Sub & one 68-pin SCSI openings | Five 9-pin D-Sub & one 68-pin SCSI openings | |
| Intelligent System Module | Remote Monitoring | CPU/System fan speed , CPU/System temperature , motherboard voltage | CPU/System fan speed , CPU/System temperature , motherboard voltage | CPU/System fan speed , CPU/System temperature , motherboard voltage | |
