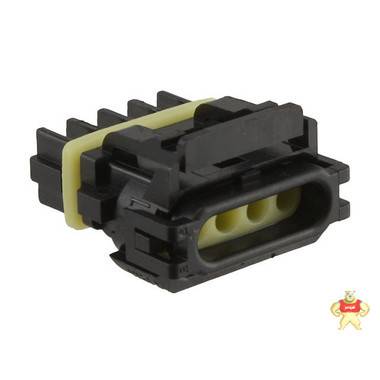

易卖工控网（www.ymgk.com）提供”52117-0411 052117-0411 全新原装 Molex Inc”，产品详情：品牌/厂家：莫仕、型号：52117-0411、成色：全新、货期：期货 7天内发货、保修：365天，更多产品详情就上易卖工控网。
| Status | Active |
|---|---|
| Category | Crimp Housings |
| Series | 52117 |
| Application | Signal, Wire-to-Wire |
| Application Tooling Part Link | 62202-4400 |
| Overview | Mizu-P25™ Miniature Waterproof Connectors |
| Product Name | Mizu-P25™ Waterproof, Splash Proof |
| UPC | 800754368735 |
| Circuits (maximum) | 4 |
|---|---|
| Color - Resin | Black |
| Gender | Receptacle |
| Glow-Wire Compliant | No |
| Lock to Mating Part | Yes |
| Material - Resin | Polyester |
| Net Weight | 1020.000/mg |
| Number of Rows | 1 |
| Packaging Type | Tray |
| Panel Mount | No |
| Pitch - Mating Interface | 2.50mm |
| Stackable | No |
| Temperature Range - Operating | -40°C to +105°C |
| (Please review the Product Specification for specific details.) | |
|---|---|
| Current - Maximum per Contact | 3.0A |
| Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database | |
|---|---|
| UL | E29179 |
| Product Specification | PS-52117-008 |
|---|---|
| Sales Drawing | SD-52117-002 |
