现货现货 英伟达NVIDIA Jetson TX2 嵌入式开发板/载板

易卖工控网（www.ymgk.com）提供”现货现货 英伟达NVIDIA Jetson TX2 嵌入式开发板/载板”，产品详情：品牌/厂家：英伟达、型号：A300、成色：全新、货期：现货 1天内发货、保修：365天，更多产品详情就上易卖工控网。

1. Summary

1.1  Brief introduction

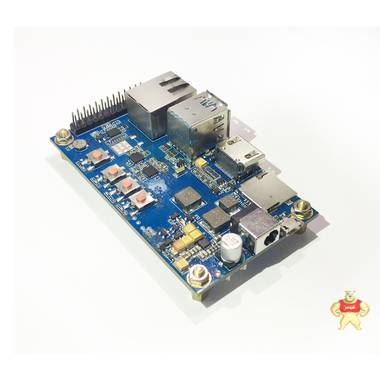

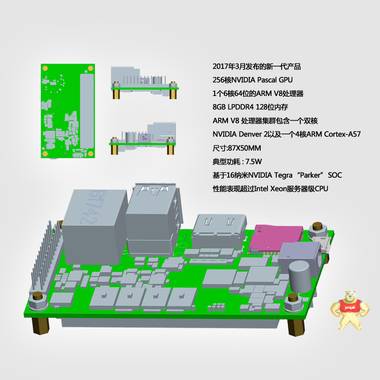

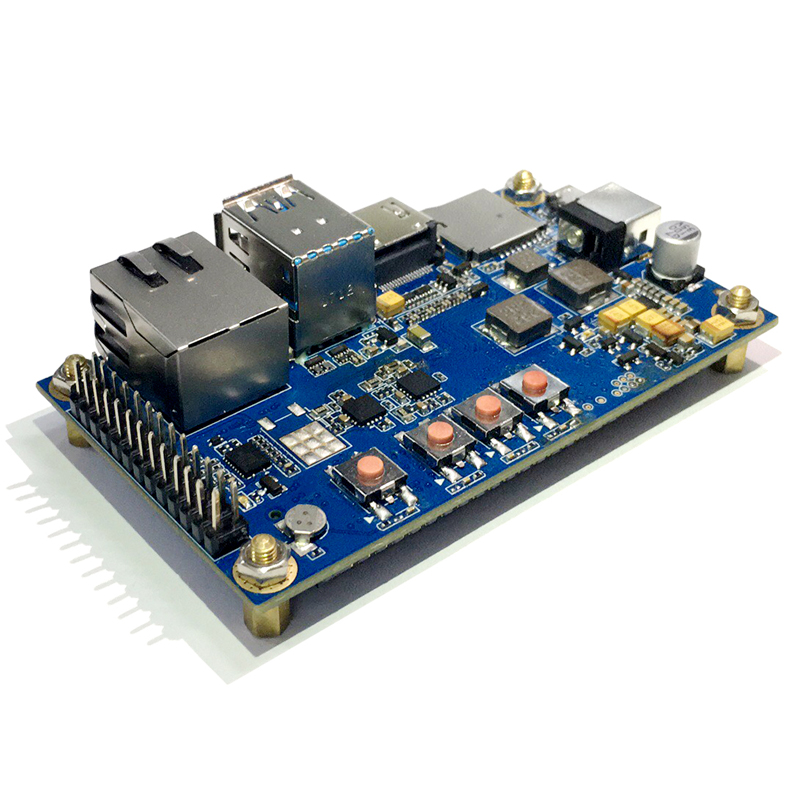

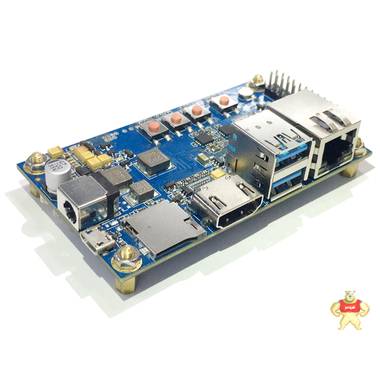

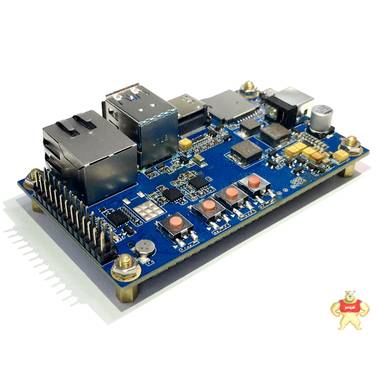

A300 is a high-performance, small size, interface rich to provide high reliability carrier plate with NVIDIA Jetson Tx1/Tx2. The board size is consistent with the NVIDIA Jetson Tx1/Tx2 module. It provides USB3.0, Gigabit Ethernet, HDMI 2.0, USB 2 (w / OTG function), UART，GPIO，I2C,CAN, Fan and other interfaces.

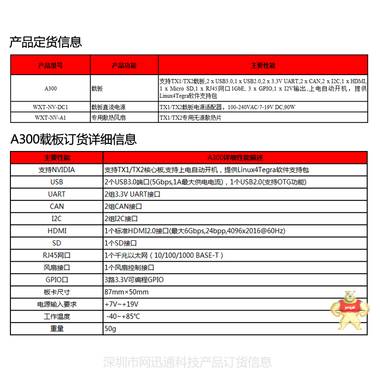

1.2 Main features

★  PCB Size / Overall Size:87mm×50mm

★  2xUSB3.0 Links ( 5Gbps,1A maximum power supply)

★  2x CAN

★  1x USB2.0 Links（w/OTG）

★  2x 3.3V UART

★  1x Gigabit Ethernet（10/100/1000 BASE-T）Links

★  4x 3.3VBit programmable GPIO

★  1x HDMI 2.0 Interface (Maximum 6Gbps，24bpp，4096x2160@60Hz)

★  1x micro SD Card Slot

★  2x I2CLinks

★  1x Fan control interface

★  Power Requirements: +7.V to +19.0V DC Input Range

★  Operating Temperature: -40~+85℃

★  Weight：50 grams
