北京电阻率测试仪厂家 体积表面电阻率测试仪

易卖工控网（www.ymgk.com）提供”北京电阻率测试仪厂家 体积表面电阻率测试仪”，产品详情：品牌/厂家：中航鼎力、型号：LST-121、成色：全新、货期：现货 1天内发货、保修：365天，更多产品详情就上易卖工控网。

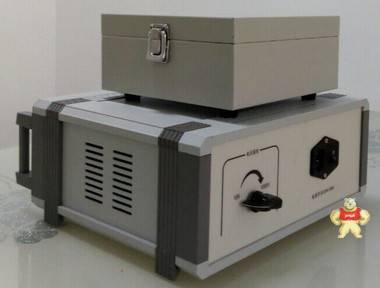

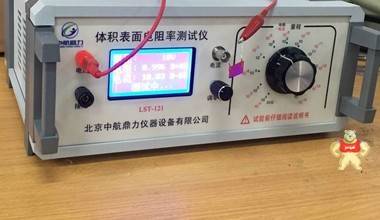

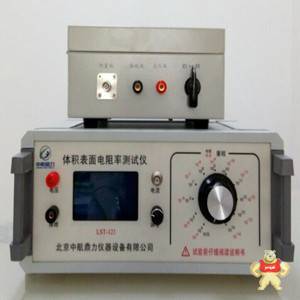

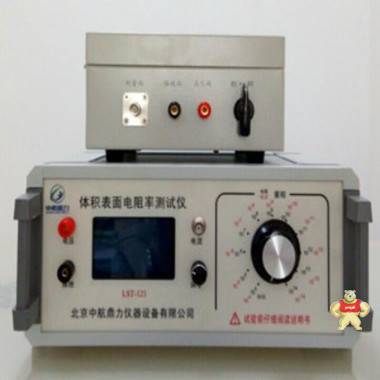

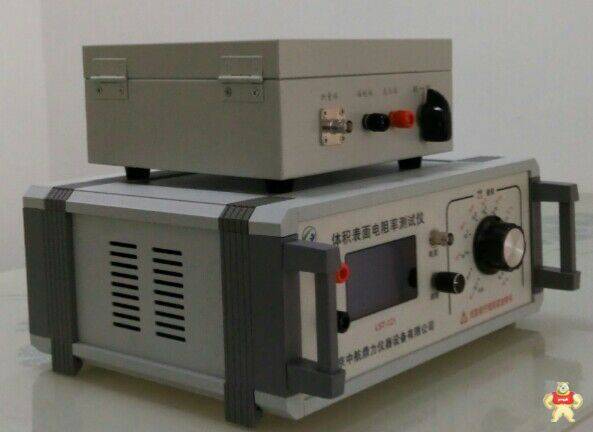

产品名称：表面体积电阻率测定仪
Product Name: surface volume resistivity meter
产品型号：LST-121 ATI-212
Product model: LST-121 ATI-212
符合***标：GB/T1410-2006 ASTM D257-99
Conforming to the national standard: GB/T1410-2006 ASTM D257-99
测量范围：0.01×104Ω～1×1018Ω
Measurement range: 0.01 x 104 Omega ~ 1 x 1018 Omega
显示方式：触摸屏、液晶显示、直读电阻、电流、电阻
Display mode: touch screen, liquid crystal display, direct reading resistance, current, resistance
测试方法：三电***法
Test method: three electrode method
符合标准：
Conform to the standard:
GB/T 1410-2006《 固体绝缘材料体积电阻率和表面电阻率试验方法》
GB/T 1410-2006 "test method for volume resistivity and surface resistivity of solid insulating materials"
ASTM D257-99《绝缘材料的直流电阻或电导试验方法》
ASTM D257-99 "test method for DC resistance or conductivity of insulating materials"
GB/T 10581-2006 《绝缘材料在高温下电阻和电阻率的试验方法》
GB/T 10581-2006 "test method for resistance and resistivity of insulating materials at high temperature"
GB/T 1692-2008 《硫化橡胶 绝缘电阻率的测定》
GB/T 1692-2008 "determination of insulation resistivity of vulcanized rubber"
GB/T 2439-2001《硫化橡胶或热塑性橡胶 导电性能和耗散性能电阻率的测定》
GB/T 2439-2001 "determination of electrical and dissipative resistivity of vulcanized rubber or thermoplastic elastomer"
GB/T 12703.4-2010 《纺织品 静电性能的评定 第４部分：电阻率》
GB/T 12703.4-2010 "evaluation of electrostatic properties of textiles: fourth part: resistivity"
GB/T 10064-2006_《测定固体绝缘材料绝缘电阻的试验方法》
GB/T 10064-2006_ "test method for measuring insulation resistance of solid insulating materials"
GB/T 22042-2008《服装 防静电性能 表面电阻率试验方法》
GB/T 22042-2008 "test method for surface resistivity of antistatic properties of clothing"
EN 1149-1-1995 《防护服 静电性能 第1部分表面电阻检验方法和要求》
EN 1149-1-1995 "first part surface resistance test methods and requirements for electrostatic properties of protective clothing"
GB/T 1410-2006《固体绝缘材料体积电阻率和表面电阻率试验方法》（与***际标准IEC93-1980等效）
GB/T 1410-2006 "test method for volume resistivity and surface resistivity of solid insulating materials" (equivalent to international standard IEC93-1980)
FZ/T 64013-2008 《静电植绒毛绒》
FZ/T 64013-2008 "electrostatic flocking Plush"
SJ/10694-2006《电子产品制造与应用系统防静电检测通用规范》6.1
SJ/10694-2006 "general specification for anti static detection of electronic products manufacturing and application system" 6.1
***、概述
First, an overview
LST-121表面体积电阻率测定仪既可测量高电阻，又可测微电流。采用了美***Intel公司的大规模集成电路,使仪器体积小、重量轻准确度高。数字液晶直接显示电阻值和电流。量限从1×104Ω ～1×1018 Ω，是目前***内测量范围***宽，准确度***的数字超高阻测量仪。电流测量范围为2×10-4 ～1×10-16Ａ。机内测试电压10V/50V/100V/250V/500V/1000V任意可调。体积表面体积电阻率测定仪具有精度高、显示迅速、性好稳定、读数方便. 体积表面体积电阻率测试仪适用于橡胶、塑料、薄膜、地毯、织物及粉体、液体、及固体和膏体形状的各种绝缘材料体积和表面电阻值的测定。
The LST-121 surface volume resistivity meter can measure both high resistance and micro current. The large scale integrated circuit of Intel company in the United States has been adopted to make the instrument small in volume and high in weight and accuracy. The digital LCD directly displays the resistance and current. The range from 1 x 104 Omega to 1 x 1018 Omega is the most wide and accurate digital ultra high resistance measuring instrument in China at present. The current measurement range is 2 x 10-4 ~ 1 x 10-16A. The internal test voltage 10V/50V/100V/250V/500V/1000V can be adjusted arbitrarily. The volume of the surface volume resistivity measuring instrument with high precision, good stability, fast display, easy reading. Each volume of the surface volume resistivity tester for rubber, plastic, film, carpet, fabric and powder, liquid, and solid and pasty shape determination of material volume and surface insulation resistance value.
二、主要特点
Two. Main features
电阻测量范围宽 1×104Ω ～1×1018Ω
The range of resistance measurement is 1 x 104 Omega ~ 1 x 1018 Omega
电流测量范围为 2×10-4Ａ ～1×10-16Ａ
The current measurement range is 2 x 10-4A ~ 1 x 10-16A
体积小、重量轻、准确度高
Small volume, light weight, high accuracy
电阻、电流双显示
Double display of resistance and current
性能好稳定、读数方便
Good stability and convenient reading
所有测试电压(10V/50V/100/250/500/1000V) 测试时电阻结果直读，免去老式高阻计在不同测试电压下或不同量程时要乘以系数等使用不便的麻烦，使测量超高电阻就如用万用表测量普通电阻样简便。既能测超高电阻又能测微电流
All the test voltage (10V/50V/100/250/500/1000V) test resistance results in reading, replacing the old high resistance meter in different test voltage or different scale should be multiplied by the coefficient of the inconvenient trouble, high resistance as the multimeter is used to measure the general resistance of samples is simple to measure. Both super high resistance and micro current can be measured
三、技术指标
Three. Technical indicators
1、电阻测量范围： 0.01×104Ω ～1×1018Ω。
1. The range of resistance measurement: 0.01 x 104 Omega 1 x 1018 Omega.
2、电流测量范围为： 2×10-4A～1×10-16A
2. The current measurement range is 2 x 10-4A ~ 1 x 10-16A
3、显 示 方 式：数字液晶显示
3, display mode: Digital LCD display
4、内置测试电压： 10V 、50V、100V、250、500、1000V
4. Built-in test voltage: 10V, 50V, 100V, 250, 500, 1000V
5、基本准确度：优于1% (*注)
5, basic accuracy: better than 1% (* Note)
6、使用环境： 温度：0℃～40℃，相对湿度<80%
6. Environment: temperature: 0 ~ 40 C, relative humidity <80%
7、机内测试电压： 10V/50V/100V/250V/500/1000V 任意切换
7, in - machine test voltage: 10V/50V/100V/250V/500/1000V arbitrary switching
8、供电形式： AC 220V，50HZ，功耗约5W
8. Power supply: AC 220V, 50HZ, power consumption about 5W
9、仪器尺寸： 285ｍｍ× 245ｍｍ× 130 mm
9. The size of the instrument: 285mm x 245mm x 130 mm
10、质量： 约5KG
10. Quality: about 5KG
四、工作原理
Four. The principle of work
表面体积电阻率测定仪根据欧姆定律，被测电阻Rx等于施加电压V除以通过的电流I。传统的高阻计的工作原理是测量电压V固定，通过测量流过取样电阻的电流I来得到电阻值。从欧姆定律可以看出，由于电流I是与电阻成反比，而不是成正比，所以电阻的显示值是非线性的，即电阻无穷大时，电流为零，即表头的零位处是∞，其附近的刻度非常密，分辨率很低。整个刻度是非线性的。又由于测量不同的电阻时，其电压V也会有些变化，所以普通的高阻计是精度差、分辨率低。
The surface volume resistivity meter is based on Ohm's law, and the measured resistance Rx is equal to the applied voltage V divided by the passing current I. The principle of the traditional high impedance meter is to measure the voltage V fixed, and to get the resistance by measuring the current I flowing through the sampling resistance. From Ohm's law, we can see that because the current I is inversely proportional to the resistance, it is not directly proportional to the resistance, so the display value of the resistance is nonlinear. When the resistance is infinite, the current is zero, that is, the zero position of the meter is infinite. The scale near it is very dense, and the resolution is very low. The entire scale is nonlinear. As a result of measuring different resistances, the voltage V will change somewhat, so the ordinary high impedance meter is of poor precision and low resolution.
本仪器是同时测出电阻两端的电压V和流过电阻的电流I，通过内部的大规模集成电路完成电压除以电流的计算，然后把所得到的结果经过A/D转换后以数字显示出电阻值，即便是电阻两端的电压V和流过电阻的电流I是同时变化，其显示的电阻值不象普通高阻计那样因被测电压V的变化或电流Ｉ的变而变，所以，即使测量电压、被测量电阻、电源电压等发生变化对其结果影响不大，其测量精度很高(***)，从理论上讲其误差可以做到零，而实际误差可以做到千分之几或万分之几。
This instrument is the current flowing through the resistor V and the voltage across the resistor I measured at the same time, the large scale integrated circuit to complete the calculation of the internal voltage divided by the current, and then the results obtained after A/D conversion by the digital display of the resistance value, even if the current voltage V and the flow resistance of the two ends of the I is changed at the same time, the resistance value is not displayed as ordinary high resistance meter as a result of the measured voltage or current change of V I variation, so, even if the measured voltage, the measured resistance and power voltage change has little influence on the results, the measurement accuracy is very high (patent), theoretically the error can be zero, while the actual error can be done a few thousandths or very few.
典型应用
Typical application
1、测量绝缘材料电阻(率)
1. Measurement of insulation resistance (rate)
2、测量防静电材料的电阻及电阻率
2. Measurement of resistance and resistivity of antistatic materials
3、测量计算机房用活动地板的系统电阻值
3. Measurement of the system resistance of the movable floor of a computer room
4、测量防静电鞋、导电鞋的电阻值
4. Measurement of resistance of antistatic shoes and conductive shoes
5、光电二***管暗电流测量
5. Measurement of dark current of photodiode
6、物理,光学和材料研究
6, physics, optics and material research
标准配置：
Standard configuration:
1、测试仪器： 1台
1. Test instruments: 1
2、电源线： 1条
2, power line: 1
3、测量线： 3根（屏蔽线、测试接线、接地线）
3, measuring line: 3 (shielded line, test wiring, grounding wire)
4、使用说明书：1份
4. Use of instructions: 1 copies
备注：
Remarks：
表面体积电阻率测定仪配不同的测量电***（夹具）可以测量不同材料（固体、粉体或液体）的体积电阻率和表面电阻率或电导率，完全符合******标准GB1410－2006固体电工绝缘材料绝缘电阻、体积电阻系数和表面电阻试验方法，A
Measuring instrument with different electrode for determination of surface resistivity (fixture) can measure different materials (solid, powder or liquid) of the volume resistivity and surface resistivity or conductivity, fully meet the national standard GB1410 - 2006 solid electrical insulation insulation resistance, volume resistivity and surface resistance test method of A materials.
