中航鼎力滑动摩擦磨损试验仪 M-200 塑料摩擦磨损试验仪/橡胶摩擦磨损/硬质塑料摩擦磨损试验机

易卖工控网（www.ymgk.com）提供”中航鼎力滑动摩擦磨损试验仪 M-200 塑料摩擦磨损试验仪/橡胶摩擦磨损/硬质塑料摩擦磨损试验机”，产品详情：品牌/厂家：中航鼎力滑动摩擦磨损试验仪、型号：M-200、成色：全新、货期：现货 1天内发货、保修：730天，更多产品详情就上易卖工控网。

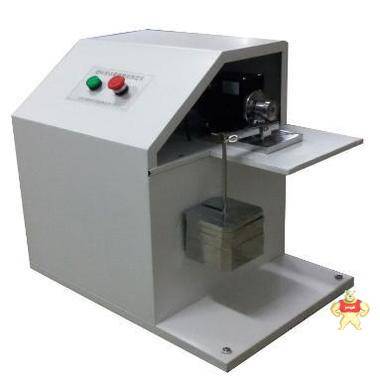

M-200橡胶塑料滑动摩擦磨损试验机（计算机控制）
M-200 rubber and plastic sliding friction and wear test machine (computer control)
***、适用范围及功能
I. scope of application and function
符合标准：GB/T 3960-1983 塑料滑动摩擦磨损试验方法 GB/T 9141.8-1999 柔性石墨板材滑动摩擦系数测试方法
Conformity criteria: GB/T 3960-1983 plastic sliding friction test method GB/T 9141.8-1999 flexible graphite sheet test method for sliding friction coefficient
另外本厂生产的计算机控制塑料滑动摩擦试验机是在现有电子塑料滑动摩擦试验机的基础上又增加了很多试验功能，可以同时显示扭矩-时间曲线，随意设定试验次数，显示当前试验次数，
The factory production of computer control of plastic sliding friction testing machine is based on the existing electronic plastic sliding friction test machine has increased a lot of test function, which can display the torque time curve, set the test number freely, display the current number of tests,
设定时间及当前试验时间等多种功能，本机还配有彩色打印机，可以打印出带有曲线，表格数据，试验单位名头的精美的试验报告单。
Various functions of the setting time and the test time, the machine is also equipped with a color printer, you can print out a curve, table data, test units were the first fine single test report.
适用于塑料制品、橡胶制品、石墨板材或其他复合材料的滑动摩擦，磨损性能测试，也可对试验中试样的磨擦力、磨擦系数和磨损量进行测定。也可对试验中试样的磨擦力、磨擦系数和磨损量进行测定。
Applicable to plastic products, rubber products, graphite plates or other composite materials of sliding friction, abrasion test, but also on the test sample friction force, friction coefficient and wear volume were measured. The frictional force, coefficient of friction and amount of wear of the sample in the test can also be measured.
本机采用高精度扭矩传感器，16 位单片机电子处理系统，使得本仪器各项测试指标精度非常高。由于集成程度很高，所以设备本身的稳定性***好，本机具有***次设置，全自动运行，实验结束后自动停机，
This machine adopts high precision torque sensor, 16 bit single chip microcomputer electronic processing system, which makes this instrument test index accuracy is very high. Because of the high degree of integration, the stability of the equipment itself is excellent. The machine has one set, fully automatic operation, and the machine stops automatically after the experiment,
并检测磨损程度，同时通过打印机打印试验数据等功能。是各个科研单位，大学，企业实验室的必备检测设备。
And detect the degree of wear, and print the test data through the printer and other functions. It is the necessary testing equipment for all scientific research institutions, universities and enterprise laboratories.
本仪器融合了当前***的智能电路系统进行控制，并结合老式M-200摩擦磨损试验机的功能进行升***改造而成，本仪器具有测控精度高，操作便捷等优势，是科研院所、质检机构、实验室研究***的试验设备。
The instrument combines the latest intelligent circuit control system, combined with the old M-200 wear testing machine friction and function upgrade, the instrument has high control accuracy, convenient operation and other advantages, is the preferred test equipment research, quality inspection institutions, scientific research laboratory.
M-200型摩擦磨损试验机主要由试验主机及智能控制系统两大部分构成，通过微机控制系统进行操作试验，在试验过程中同时可以显示数值、扭矩、时间曲线，并可以随意设定试验次数，显示当前试验数值，
The friction and wear testing machine is mainly composed of the host and the intelligent control system consists of two parts of M-200 type, operation test by microcomputer control system, in the course of the experiment, and can display the numerical torque, time curve, and can set the test number freely, display the current test data,
设定时间及当前试验时间等多种功能，随机配备彩色打印机，可以打印出带有曲线、表格数据等标准要求的试验报告。
Set the time and the current test time and other functions, random equipped with color printers, you can print out with curves, tables, data and other standard requirements of the test report.
二、产品参数及精度：
Two, product parameters and accuracy:
1、试样尺寸： 30mm×7mm×6mm
1, sample size: 30mm * 7mm * 6mm
2、转动速度： 0-500转/分 （可调）
2, rotation speed: 0-500 revolutions per minute (adjustable)
3、负 荷： 196N ± 0.1%（可增至392N）
3, load: 196N + 0.1% (can be increased to 392N)
4、摩擦环尺寸：￠40×10mm ，倒角0.5×45°，外圆表面与内圆同心度偏差小于0.01
4, the friction ring of size: 40 x 10mm, 0.5 x 45 degree chamfer, surface of the outer circle and inner circle concentricity deviation is less than 0.01
5、摩擦环材质：45号钢,淬火,热处理HRC40-45,外圆表面光洁度▼8
5, the friction ring material: 45 steel, quenching, heat treatment of HRC40-45, the outer circle surface finish size 8
6、摩擦力矩： 0--4N·m
6, friction torque: 0--4N. M
7、砝码重量：4KG砝码***件，1KG砝码4件，可实现重量叠加功能。
7, weight weight: 4KG weight one, 1KG weight 4 pieces, can realize weight stacking function.
8、速度精度：1%
8, speed accuracy: 1%
9、负荷精度：0.5%
9, load accuracy: 0.5%
10、摩擦力矩精度：1%
10, friction torque accuracy: 1%
11、计数器精度：1S
11, counter accuracy: 1S
12、传感器测量精度：1% FS
12, sensor measurement accuracy: 1% FS
三、主要配置及附件：（计算机控制）
Three, the main configuration and accessories: (computer control)
1、试验主机***台
1, test host one
2、高精度扭矩传感器***只
2 、 high-precision torque sensor one
3、计算机数据采集卡***块
3, a computer data acquisition card
4、计算机***台（品牌）
4, a computer (brand)
5、彩色激光喷墨打印机***台
5 、 color laser inkjet printer one
6、计算机控制软件***套
6, a computer control software set
7、4Kg 砝码两件（备用***套）
7, 4Kg weights two (alternate set)
8、标准磨擦环四件（备用两件）
8, standard friction ring four pieces (spare two pieces)
9、产品使用说明书***份
9, a manual of product instruction
10、产品合格证
10 、 product qualification certificate
11、产品装箱单***份

12、整机重量：约87 公斤
