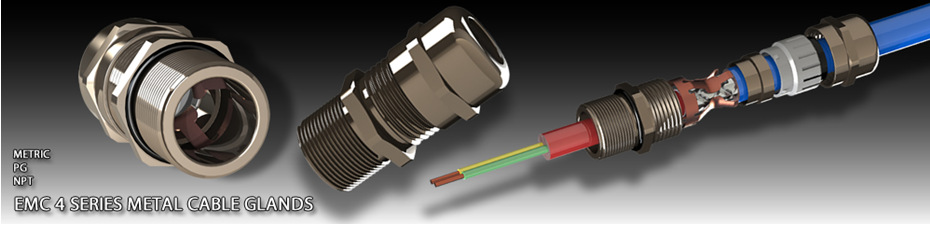

These cable glands are developed according to end users\' requirements. Their features can be summarized as follows:
· Easy insertion of the cable from the two sides of the gland.
· Open contact fingers in loose position.
· Free radial and axial movement of the cable.
· Easy radial and axial movement of the cable, even in contact position without any damage to the braid with the help of rounded contact finger surfaces.
· Large contact surfaces of the fingers allow low contact resistance even on loosely woven cable braids (the contact surfaces do not sink into the braided wires).
· High contact performance even under vibrating conditions with help of the reduced A2 distance between the "sealing clamping level" and "EMC contact level".
Technical Details
Material
Body Brass, Nickel plated
Cap Brass, Nickel plated
Seal CR (Chloroprene Rubber)
Clamp.Insert Polyamide 6O-ring NBR
Flammability V2 (According to UL 94)
Protection Class IP 68 - 5 Bar
Operating Temperature
Permanent -20 °C up to +100 °C
Intermittent -40 °C up to +150 °C
Benefits
Suitable for highest demands of todays technology
Easy to assemble
Easy handling
Water tight
Strain relief
Accessories
Lock nuts
Reducing seals
Flat cable seals
Multihole seals
Remarks
Different sealing types available
Large accessory range
Manufactured according to the requirements of EN 50262
Thread Type | Clamping Range | Shield Diameter | TL mm | TD mm | SW1 mm | SW2 mm | Max. | CODES | Inner Pack | Box/Min.OQ |
Ø min-max mm | Ø min mm | H mm | ||||||||
M12X1,5 | 3,0 - 6,5 | 2,0 - 5,0 | 6,0 | 12 | 14,0 | 14,0 | 28,0 | BMEM-ES (M12T) | 50 | 200 |
M16X1,5 | 5,0 - 10,0 | 3,5 - 8,0 | 6,0 | 16 | 20,0 | 20,0 | 33,0 | BMEM-E1 (M16T) | 50 | 100 |
M20X1,5 | 6,0 - 12,0 | 4,5 - 10,0 | 6,0 | 20 | 22,0 | 22,0 | 32,0 | BMEM-E2S (M20T) | 50 | 800 |
M20X1,5 | 7,5 - 14,0 | 5,5 - 11,5 | 8,0 | 20 | 24,0 | 24,0 | 39,5 | BMEM-E2 (M20T) | 50 | 600 |
M25X1,5 | 10,0 - 18,0 | 7,0 - 14,0 | 8,0 | 25 | 30,0 | 30,0 | 43,0 | BMEM-E3 (M25T) | 25 | 400 |
M32X1,5 | 16,0 - 25,0 | 12,0 - 20,0 | 9,0 | 32 | 40,0 | 40,0 | 53,0 | BMEM-E4 (M32T) | 25 | 250 |
M40X1,5 | 22,0 - 32,0 | 18,0 - 27,0 | 9,0 | 40 | 50,0 | 50,0 | 60,5 | BMEM-E5 (M40T) | 20 | 140 |
M50X1,5 | 30,0 - 38,0 | 26,0 - 34,0 | 9,0 | 50 | 58,0 | 58,0 | 73,0 | BMEM-E6 (M50T) | 12 | 72 |
M63X1,5 | 34,0 - 44,0 | 30,0 - 40,0 | 14,0 | 63 | 64,0 | 68,0 | 59,0 | BMEM-E7 (M63T) | 12 | 72 |
M63X1,5 | 37,0 - 53,0 | 33,0 - 49,0 | 10,0 | 63 | 75,0 | 75,0 | 72,0 | BMEM-E7L (M63T) | 12 | 72 |
Pg7 | 3,0 - 6,5 | 2,0 - 5,0 | 6,0 | 12,50 | 14,0 | 14,0 | 22,0 | BSEM-E1(Pg7T) | 50 | 2000 |
Pg9 | 4,0 - 8,0 | 3,0 - 4,0 | 6,0 | 15,20 | 17,0 | 17,0 | 23,0 | BSEM-E2 (Pg9T) | 50 | 1500 |
Pg11 | 5,0 - 10,0 | 3,5 - 8,0 | 6,0 | 18,60 | 20,0 | 20,0 | 28,0 | BSEM-E3(Pg11T) | 50 | 1 |
Pg13,5 | 6,0 - 12,0 | 4,5 - 10,0 | 6,0 | 20,40 | 22,0 | 22,0 | 26,0 | BSEM-E4(Pg13,5T) | 50 | 800 |
Pg16 | 7,5 - 14,0 | 5,5 - 11,5 | 8,0 | 22,50 | 24,0 | 24,0 | 30,0 | BSEM-E5 (Pg16T) | 25 | 600 |
Pg21 | 10,0 - 18,0 | 7,0 - 14,0 | 8,0 | 28,30 | 30,0 | 30,0 | 34,0 | BSEM-E6 (Pg21T) | 25 | 400 |
Pg29 | 16,0 - 25,0 | 12,0 - 20,0 | 9,0 | 37,00 | 40,0 | 40,0 | 41,0 | BSEM-E7 (Pg29T) | 25 | 250 |
Pg36 | 22,0 - 32,0 | 18,0 - 27,0 | 9,0 | 47,00 | 50,0 | 50,0 | 48,0 | BSEM-E8 (Pg36T) | 20 | 140 |
Pg42 | 30,0 - 38,0 | 26,0 - 34,0 | 9,0 | 54,00 | 58,0 | 60,0 | 49,0 | BSEM-E9 (Pg42T) | 10 | 100 |
Pg48 | 34,0 - 44,0 | 30,0 - 40,0 | 14,0 | 59,30 | 64,0 | 68,0 | 52,0 | BSEM-E0 (Pg48T) | 5 | 50 |
