易卖工控网(www.ymgk.com)提供”PSW800-2.88可编程开关直流稳压电源”,产品详情:品牌/厂家:固纬、型号:PSW800-2.88、成色:全新、货期:期货 1天内发货、保修:365天,更多产品详情就上易卖工控网。

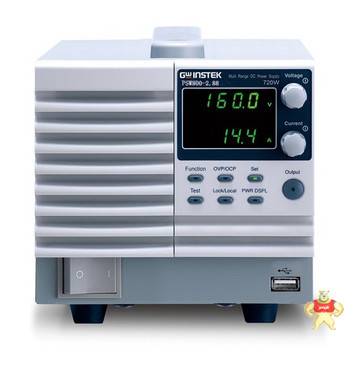

PSW800-2.88可编程开关直流稳压电源
需详细信息,联系我司,有更多惊喜优惠,谢谢!!!
额定电压:30V/80V/160V/250V/800V,额定输出功率:360W~1080W
多量程(V&I)操作,定功率输出
C.V/C.C优先;尤其适合电池和LED产业
可调斜率
串联操作(2台)( 30V/80V/160V),
并联操作(3台)( 30V/80V/160V/250V/800V)
高效率和高功率密度
1/2、1/3、1/6机架尺寸(EIA/JIS标准),用于360W、720W、1080W
标配接口:LAN、USB、模拟控制接口
选配接口:GPIB-USB适配器
LabVIEW驱动
PSW-系列是一款单路输出、多量程可编程开关直流电源,***功率1080W。该系列涵盖15种机型,提供30V、80V、160V、250V和800V的额定电压和360W、720W和1080W的***输出功率。多量程操作可以灵活有效的设置电压和电流。用户最多能串行连接2台或并行连接3台PSW电源,这种提供更高输出电压或电流的连接能力极大的扩展了它的应用范围。灵活的多量程操作和串/并联连接,您无需再花费资金购买多种电源产品,PSW-系列完全可以满足不同层次的电源需求。
PSW-系列的C.V/C.C优先选择模式能够很好的保护待测物。当输出开启时,传统电源通常处于C.V模式,这会瞬间给电容性负载或强电流负载带来一个较大的浪涌电流。以LED的I-V曲线验证为例,使用传统电源就难以完成测量工作。C.V模式下连接LED与电源,打开输出,当电压超过LED正向电压时,电流突然增大并超过预设限流值。由于侦测到浪涌电流,电源由C.V模式转换为C.C模式。虽然模式转换后电流逐渐稳定,但C.V和C.C相交处的尖峰电流可能会造成待测物损坏。然而,PSW-系列在输出开启瞬间,能优先运行在C.C模式,避免突发的尖峰电流,保护器件免遭浪涌电流损坏。
PSW-系列设计了可调斜率功能,用户可以设置输出电压或输出电流的上升时间(由低电平变为高电平)和下降时间(由高电平变为低电平)。当电压或电流准位变化时,可调斜率有利于待测物的特性验证。通常情况下,生产测试照明装置和大型电容时会在输出打开瞬间引发浪涌电流,这严重缩短了DUT寿命。为了避免浪涌电流破坏强电流器件,在开关瞬间光滑和缓慢的电压传输可以显著减少浪涌电流,保护器件免遭大电流损坏。
PSW-系列提供OVP和OCP保护,保护电平默认为额定输出电压/电流的110%。一旦超过预设值,输出立刻关闭。PSW-系列标配USB Host/Device、LAN接口和GPIB-USB选配接口,所有接口均支持LabView驱动和数据记录PC软件。后面板的模拟控制/监控接口,可以外部控制电源开/关和外部监控输出电压和电流。
PSW-360W | |||||||
Model | PSW | 30-36 | 80-13.5 | 160-7.2 | 250-4.5 | 800-1.44 | |
Rated Output Voltage | V | 30 | 80 | 160 | 250 | 800 | |
Rated Output Current | A | 36 | 13.5 | 7.2 | 4.5 | 1.44 | |
Rated Output Power | W | 360 | 360 | 360 | 360 | 360 | |
Power Ratio | -- | 3 | 3 | 3.2 | 3.125 | 3.2 | |
Constant Voltage Mode | PSW | 30-36 | 80-13.5 | 160-7.2 | 250-4.5 | 800-1.44 | |
Line Regulation (*1) | mV | 18 | 43 | 83 | 128 | 403 | |
Load Regulation (*2) | mV | 20 | 45 | 85 | 130 | 405 | |
Ripple and Noise (*3) | |||||||
p-p (*4) | mV | 60 | 60 | 60 | 80 | 150 | |
r.m.s (*5) | mV | 7 | 7 | 12 | 15 | 30 | |
Temperature coefficient | ppm/°C | 100ppm/°C of rated output voltage, after a 30 minute warm-up. | |||||
Remote sense compensation voltage | V/wire | 0.6 | 0.6 | 0.6 | 1 | 1 | |
Rise Time (*6) | |||||||
Rated Load | ms | 50 | 50 | 100 | 100 | 150 | |
No Load | ms | 50 | 50 | 100 | 100 | 150 | |
Fall Time (*7) | |||||||
Rated Load | ms | 50 | 50 | 100 | 150 | 300 | |
No Load | ms | 500 | 500 | 1000 | 1200 | 2000 | |
Transient response time (*8) | ms | 1 | 1 | 2 | 2 | 2 | |
Constant Current Mode | PSW | 30-36 | 80-13.5 | 160-7.2 | 250-4.5 | 800-1.44 | |
Line regulation (*1) | mA | 41 | 18.5 | 12.2 | 9.5 | 6.44 | |
Load regulation (*9) | mA | 41 | 18.5 | 12.2 | 9.5 | 6.44 | |
Ripple and noise | |||||||
r.m.s (*5 ) | mA | 72 | 27 | 15 | 10 | 5 | |
Temperature coefficient | ppm/°C | 200ppm/°C of rated output current, after a 30 minute warm-up. | |||||
Protection Function | PSW | 30-36 | 80-13.5 | 160-7.2 | 250-4.5 | 800-1.44 | |
Over voltage protection (OVP) | |||||||
Setting range | V | 3-33 | 8-88 | 16-176 | 20-275 | 20-880 | |
Setting accuracy | ± (2% of rated output voltage) | ||||||
Over current protection (OCP) | |||||||
Setting range | A | 3.6-39.6 | 1.35-14.85 | 0.72-7.92 | 0.45-4.95 | 0.144-1.584 | |
Setting accuracy | ± (2% of rated output current) | ||||||
Over temperature protection (OTP) | |||||||
Operation | Turn the output off. | ||||||
Low AC input protection (AC-FAIL) | |||||||
Operation | Turn the output off. | ||||||
Power limit (POWER LIMIT) | |||||||
Operation | Over power limit. | ||||||
Value (fixed) | Approx. 105% of rated output power | ||||||
Front Panel | PSW | 30-36 | 80-13.5 | 160-7.2 | 250-4.5 | 800-1.44 | |
Display, 4 digits | |||||||
Voltage accuracy 0.1% + | mV | 20 | 20 | 100 | 200 | 400 | |
Current accuracy 0.1% + | mA | 40 | 20 | 5 | 5 | 2 | |
Programming and Measurement (Interface) | PSW | 30-36 | 80-13.5 | 160-7.2 | 250-4.5 | 800-1.44 | |
Voltage programming accuracy 0.1% + | mV | 10 | 10 | 100 | 200 | 400 | |
Current programming accuracy 0.1% + | mA | 30 | 10 | 5 | 5 | 2 | |
Voltage programming resolution | mV | 1 | 2 | 3 | 5 | 14 | |
Current programming resolution | mA | 1 | 1 | 1 | 1 | 1 | |
Voltage measurement accuracy 0.1% + | mV | 10 | 10 | 100 | 200 | 400 | |
Current measurement accuracy 0.1% + | mA | 30 | 10 | 5 | 5 | 2 | |
Voltage measurement resolution | mV | 1 | 2 | 3 | 5 | 14 | |
Current measurement resolution | mA | 1 | 1 | 1 | 1 | 1 | |
PSW-720W | |||||||
Model | PSW | 30-72 | 80-27 | 160-14.4 | 250-9 | 800-2.88 | |
Rated Output Voltage | V | 30 | 80 | 160 | 250 | 800 | |
Rated Output Current | A | 72 | 27 | 14.4 | 9 | 2.88 | |
Rated Output Power | W | 720 | 720 | 720 | 720 | 720 | |
Power Ratio | -- | 3 | 3 | 3.2 | 3.125 | 3.2 | |
Constant Voltage Mode | PSW | 30-72 | 80-27 | 160-14.4 | 250-9 | 800-2.88 | |
Line Regulation (*1) | mV | 18 | 43 | 83 | 128 | 403 | |
Load Regulation (*2) | mV | 20 | 45 | 85 | 130 | 405 | |
Ripple and Noise (*3) | |||||||
p-p (*4) | mV | 80 | 80 | 80 | 100 | 200 | |
r.m.s (*5) | mV | 11 | 11 | 15 | 15 | 30 | |
Temperature coefficient | ppm/°C | 100ppm/°C of rated output voltage, after a 30 minute warm-up. | |||||
Remote sense compensation voltage | V/wire | 0.6 | 0.6 | 0.6 | 1 | 1 | |
Rise Time (*6) | |||||||
Rated Load | ms | 50 | 50 | 100 | 100 | 150 | |
No Load | ms | 50 | 50 | 100 | 100 | 150 | |
Fall Time (*7) | |||||||
Rated Load | ms | 50 | 50 | 100 | 150 | 300 | |
No Load | ms | 500 | 500 | 1000 | 1200 | 2000 | |
Transient response time (*8) | ms | 1 | 1 | 2 | 2 | 2 | |
Constant Current Mode | PSW | 30-72 | 80-27 | 160-14.4 | 250-9 | 800-2.88 | |
Line regulation (*1) | mA | 77 | 32 | 19.4 | 14 | 7.88 | |
Load regulation (*9) | mA | 77 | 32 | 19.4 | 14 | 7.88 | |
Ripple and noise | |||||||
r.m.s (*5 ) | mA | 144 | 54 | 30 | 20 | 10 | |
Temperature coefficient | ppm/°C | 200ppm/°C of rated output current, after a 30 minute warm -up. | |||||
Protection Function | PSW | 30-72 | 80-27 | 160-14.4 | 250-9 | 800-2.88 | |
Over voltage protection (OVP) | |||||||
Setting range | V | 3-33 | 8-88 | 16-176 | 20-275 | 20-880 | |
Setting accuracy | ± (2% of rated output voltage) | ||||||
Over current protection (OCP) | |||||||
Setting range | A | 5-79.2 | 2.7-29.7 | 1.44-15.84 | 0.9-9.9 | 0.288-3.168 | |
Setting accuracy | ± (2% of rated output current) | ||||||
Over temperature protection (OTP) | |||||||
Operation | Turn the output off. | ||||||
Low AC input protection (AC-FAIL) | |||||||
Operation | Turn the output off. | ||||||
Power limit (POWER LIMIT) | |||||||
Operation | Over power limit. | ||||||
Value (fixed) | Approx. 105% of rated output power | ||||||
Front Panel | PSW | 30-72 | 80-27 | 160-14.4 | 250-9 | 800-2.88 | |
Display, 4 digits | |||||||
Voltage accuracy 0.1% + | mV | 20 | 20 | 100 | 200 | 400 | |
Current accuracy 0.1% + | mA | 70 | 40 | 30 | 10 | 4 | |
Programming and Measurement (Interface) | PSW | 30-72 | 80-27 | 160-14.4 | 250-9 | 800-2.88 | |
Voltage programming accuracy 0.1% + | mV | 10 | 10 | 100 | 200 | 400 | |
Current programming accuracy 0.1% + | mA | 60 | 30 | 15 | 10 | 4 | |
Voltage programming resolution | mV | 1 | 2 | 3 | 5 | 14 | |
Current programming resolution | mA | 2 | 2 | 2 | 1 | 1 | |
Voltage measurement accuracy 0.1% + | mV | 10 | 10 | 100 | 200 | 400 | |
Current measurement accuracy 0.1% + | mA | 60 | 30 | 15 | 10 | 4 | |
Voltage measurement resolution | mV | 1 | 2 | 3 | 5 | 14 | |
Current measurement resolution | mA | 2 | 2 | 2 | 1 | 1 | |
PSW-1080W | |||||||
Model | PSW | 30-108 | 80-40.5 | 160-21.6 | 250-13.5 | 800-4.32 | |
Rated Output Voltage | V | 30 | 80 | 160 | 250 | 800 | |
Rated Output Current | A | 108 | 40.5 | 21.6 | 13.5 | 4.32 | |
Rated Output Power | W | 1080 | 1080 | 1080 | 1080 | 1080 | |
Power Ratio | -- | 3 | 3 | 3.2 | 3.125 | 3.2 | |
Constant Voltage Mode | PSW | 30-108 | 80-40.5 | 160-21.6 | 250-13.5 | 800-4.32 | |
Line Regulation (*1) | mV | 18 | 43 | 83 | 128 | 403 | |
Load Regulation (*2) | mV | 20 | 45 | 85 | 130 | 405 | |
Ripple and Noise (*3) | |||||||
p-p (*4) | mV | 100 | 100 | 100 | 120 | 200 | |
r.m.s (*5) | mV | 14 | 14 | 20 | 15 | 30 | |
Temperature coefficient | ppm/°C | 100ppm/°C of ra ted output voltage, after a 30 minute warm-up. | |||||
Remote sense compensation voltage | V/wire | 0.6 | 0.6 | 0.6 | 1 | 1 | |
Rise Time (*6) | |||||||
Rated Load | ms | 50 | 50 | 100 | 100 | 150 | |
No Load | ms | 50 | 50 | 100 | 100 | 150 | |
Fall Time (*7) | |||||||
Rated Load | ms | 50 | 50 | 100 | 150 | 300 | |
No Load | ms | 500 | 500 | 1000 | 1200 | 2000 | |
Transient response time (*8) | ms | 1 | 1 | 2 | 2 | 2 | |
Constant Current Mode | PSW | 30-108 | 80-40.5 | 160-21.6 | 250-13.5 | 800-4.32 | |
Line regulation (*1) | mA | 113 | 45.5 | 26.6 | 18.5 | 9.32 | |
Load regulation (*9) | mA | 113 | 45.5 | 26.6 | 18.5 | 9.32 | |
Ripple and noise | |||||||
r.m.s (*5 ) | mA | 216 | 81 | 45 | 30 | 15 | |
Temperature coefficient | ppm/°C | 200ppm/°C of rated output current, after a 30 minute warm-up . | |||||
Protection Function | PSW | 30-108 | 80-40.5 | 160-21.6 | 250-13.5 | 800-4.32 | |
Over voltage protection (OVP) | |||||||
Setting range | V | 3-33 | 8-88 | 16-176 | 20-275 | 20-880 | |
Setting accuracy | ± (2% of rated output voltage) | ||||||
Over current protection (OCP) | |||||||
Setting range | A | 5-118.8 | 4.05-44.55 | 2.16-23.76 | 1.35-14.85 | 0.432-4.752 | |
Setting accuracy | ± (2% of rated output current) | ||||||
Over temperature protection (OTP) | |||||||
Operation | Turn the output off. | ||||||
Low AC input protection (AC-FAIL) | |||||||
Operation | Turn the output off. | ||||||
Power limit (POWER LIMIT) | |||||||
Operation | Over power limit. | ||||||
Value (fixed) | Approx. 105% of rated output power | ||||||
Front Panel | PSW | 30-108 | 80-40.5 | 160-21.6 | 250-13.5 | 800-4.32 | |
Display, 4 digits | |||||||
Voltage accuracy 0.1% + | mV | 20 | 20 | 100 | 200 | 400 | |
Current accuracy 0.1% + | mA | 100 | 50 | 30 | 20 | 6 | |
Programming and Measurement (Interface) | PSW | 30-108 | 80-40.5 | 160-21.6 | 250-13.5 | 800-4.32 | |
Voltage programming accuracy 0.1% + | mV | 10 | 10 | 100 | 200 | 400 | |
Current programming accuracy 0.1% + | mA | 100 | 40 | 20 | 15 | 6 | |
Voltage programming resolution | mV | 1 | 2 | 3 | 5 | 14 | |
Current programming resolution | mA | 3 | 3 | 3 | 1 | 1 | |
Voltage measurement accuracy 0.1% + | mV | 10 | 10 | 100 | 200 | 400 | |
Current measurement accuracy 0.1% + | mA | 100 | 40 | 20 | 15 | 6 | |
Voltage measurement resolution | mV | 1 | 2 | 3 | 5 | 14 | |
Current measurement resolution | mA | 3 | 3 | 3 | 1 | 1 | |
Common Specification | |||||||
Input Characteristics | PSW | 30V | 80V | 160V | 250V | 800V | |
Nominal input rating | 100Vac to 240Vac, 50Hz to 60Hz, single phase | ||||||
Input voltage range | 85Vac ~ 265Vac | ||||||
Input voltage range | 47Hz ~ 63Hz | ||||||
Maximum input current | |||||||
100Vac | A | 360W: 5A, 720W: 10A, 1080W: 15A | |||||
200Vac | A | 360W: 2.5A, 720W: 5A, 1080W: 7.5A | |||||
Inrush current | A | < 25A for 360W, < 50A for 720W, < 75A for 1080W | |||||
Maximum input power | VA | 360W: 500VA, 720W: 1000VA, 1080W: 1500VA | |||||
Power factor | |||||||
100Vac | 0.99 | ||||||
200Vac | 0.97 | ||||||
Efficiency | |||||||
100Vac | % | 77 | 78 | 79 | 79 | 80 | |
200Vac | % | 79 | 80 | 81 | 81 | 82 | |
Hold-up time | 20ms or greater | ||||||
Analog Programming and Monitoring | PSW | 30V | 80V | 160V | 250V | 800V | |
External voltage control output voltage | Accuracy and linearity: ±0.5% of rated output voltage. | ||||||
External voltage control output current | Accuracy and linearity: ±1% of rated output current. | ||||||
External resistor control output voltage | Accuracy and linearity: ±1.5% of rated output voltage. | ||||||
External resistor control output current | Accuracy and linearity: ±1.5% of rated output current. | ||||||
Output voltage monitor | |||||||
Accuracy | % | ±1 | ±1 | ±1 | ±2 | ±2 | |
Output current monitor | |||||||
Accuracy | % | ±1 | ±1 | ±1 | ±2 | ±2 | |
Shutdown control | Turns the output off with a LOW (0V to 0.5V) or short-circuit. | ||||||
Output on/off control | Possible logic selections: Turn the output on using a LOW (0V to 0.5V) or short-circuit, turn the output off using a HIGH (4.5V to 5V) or open-circuit. Turn the output on using a HIGH (4.5V to 5V) or open-circuit, turn the output off using a LOW (0V to 0.5V) or short-circuit. | ||||||
CV/CC/ALM/PWR ON/OUT ON indicator | Photocoupler open collector output; Maximum voltage 30V, maximum sink current 8mA. | ||||||
Series and Parallel Capability | PSW | 30V | 80V | 160V | 250V | 800V | |
Parallel number | Units | 3 | 3 | 3 | 3 | 3 | |
Series Number | Units | 2 | 2 | 2 | None | None | |
Front Panel | |||||||
Indications | GREEN LED\'s: CV, CC, VSR, ISR, DLY, RMT, 20, 40, 60, 80, 100, %W, W, V, A RED LED\'s: ALM | ||||||
Buttons | Function, OVP/OCP, Set, Test, Lock/Local, PWR DSPL, Output | ||||||
Knobs | Voltage, Current | ||||||
USB port | Type A USB connector | ||||||
Interface Capabilities | |||||||
USB | TypeA: Host, TypeB: Slave, Speed: 1.1/2.0, USB Class: CDC(Communications Device Class) | ||||||
LAN | MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask | ||||||
GPIB | Optional: GUG-001 (GPIB to USB Adapter) | ||||||
Environmental Conditions | |||||||
Operating temperature | 0˚C to 50˚C | ||||||
Storage temperature | -25˚C to 70˚C | ||||||
Operating humidity | 20% to 85% RH; No condensation | ||||||
Storage humidity | 90% RH or less; No condensation | ||||||
Altitude | Maximum 2000m | ||||||
General Specifications | |||||||
Weight (main unit only) | kg | Approx. 3kg for 360W, Approx. 5.3kg for 720W, Approx. 7.5kg for 1080W | |||||
Dimensions (WxHxD) | mm3 | 360W: 71×124×350mm, 720W: 142×124×350mm, 1080W: 214×124×350mm | |||||
Cooling | Forced air cooling by internal fan. | ||||||
EMC | Complies with the European EMC directive 2004/108 /EC for Class A test and measurement products. | ||||||
Safety | Complies with the European Low Voltage Directive 2006 /95/EC and carries the CE-marking. | ||||||
Withstand voltage | Between input and chassis: No abnormalities at 1500 Vac for 1 minute. | ||||||
Between input and output: No abnormalities at 3000 Vac for 1 minute. | |||||||
Between output and chassis: No abnormalities at 500 Vdc for 1 minute for 30V, 80V, 160V models. | |||||||
No abnormalities at 1500 Vdc for 1 minute for 250V, 800V models. | |||||||
Insulation resistance | Between input and chassis: 500 Vdc, 100MΩ or more | ||||||
Between input and output: 500 Vdc, 100MΩ or more | |||||||
Between output and chassis: 500 Vdc, 100MΩ or more for 30V, 80V, 160V and 250V models. | |||||||
1000Vdc, 100MΩ or more for 800V models. |
Notes
*1: At 85 ~ 132Vac or 170 ~ 265Vac, constant load.
*2: From No-load to Full-load, constant input voltage. Measured at the sensing point in Remote Sense.
*3: Measure with JEITA RC-9131B (1:1) probe
*4: Measurement frequency bandwidth is 10Hz to 20MHz.
*5: Measurement frequency bandwidth is 5Hz to 1MHz.
*6: From 10% to 90% of rated output voltage, with rated resistive load.
*7: From 90% to 10% of rated output voltage, with rated resistive load.
*8: Time for output voltage to recover within 0.1% + 10mV of its rated output for a load change from 50 to 100% of its rated output current.
*9: For load voltage change, equal to the unit voltage rating, constant input voltage.
