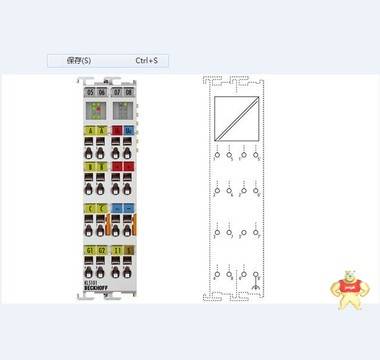

易卖工控网(www.ymgk.com)提供”KL5101 德国倍福BECKHOFF 原装进口现货全新 量大价更优”,产品详情:品牌/厂家:倍福、型号:KL5101、成色:全新、货期:期货 7天内发货、保修:365天,更多产品详情就上易卖工控网。
The KL5101 terminal is an interface for the direct connection of incremental encoders with difference signal (RS485) or with single inputs. A 16 bit counter with a quadrature decoder and a 16 bit latch for the zero pulse can be read, set or enabled. Incremental encoders with alarm outputs can be connected at the interface’s status input. Interval measurement with a resolution of 200 ns is possible. The G2 input allows the counter to be halted (high = stop). The value is read with a rising edge at G1.
Technical data | KL5101 | KS5101 |
---|---|
Technology | incremental encoder interface (RS485) |
Number of channels | 1 incremental encoder + 1 input |
Encoder connection | A, A (inv), B, B (inv), zero, zero (inv), difference signal (RS485); status input |
Encoder operating voltage | 5 V DC |
Encoder output current | 0.5 A |
Counter | 16 bit, binary |
Limit frequency | 4 million increments/s (with 4-fold evaluation) |
Quadrature decoder | 1-, 2-, or 4-fold evaluation |
Zero-pulse latch | 16 bit |
Commands | read, set, enable |
Power supply | 24 V DC (-15 %/+20 %) |
Supply voltage | 24 V DC (-15 %/+20 %) |
Current consumption power contacts | – (no power contacts) |
Current consumpt. K-bus | typ. 60 mA |
Bit width in the process image | input: 1 x 16 bit data, 1 x 8 bit control/status |
Weight | approx. 85 g |
Operating/storage temperature | -25…+60 °C/-40…+85 °C |
Relative humidity | 95 %, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos. | IP 20/variable |
Pluggable wiring | for all KSxxxx Bus Terminals |
Approvals | CE, UL, Ex |
